3 inch speaker unit 77mm 3w 8ohm loudspeaker
Short Description:
Price:
US $0. 5- 1.0 / Piece
Sample:
Free sample
Lead-time:
10-15days
Type:
Unit
Min.Order Quantity:
1000Piece/Pieces,support trial order
Supply Ability:
100000 Piece/Pieces per Month
Port:
Xiamen,Shenzhen,Ningbo,etc
Payment Terms:
T/T,L/C.Paypal
Send email to us
Download as PDF
Product Detail
Product Tags

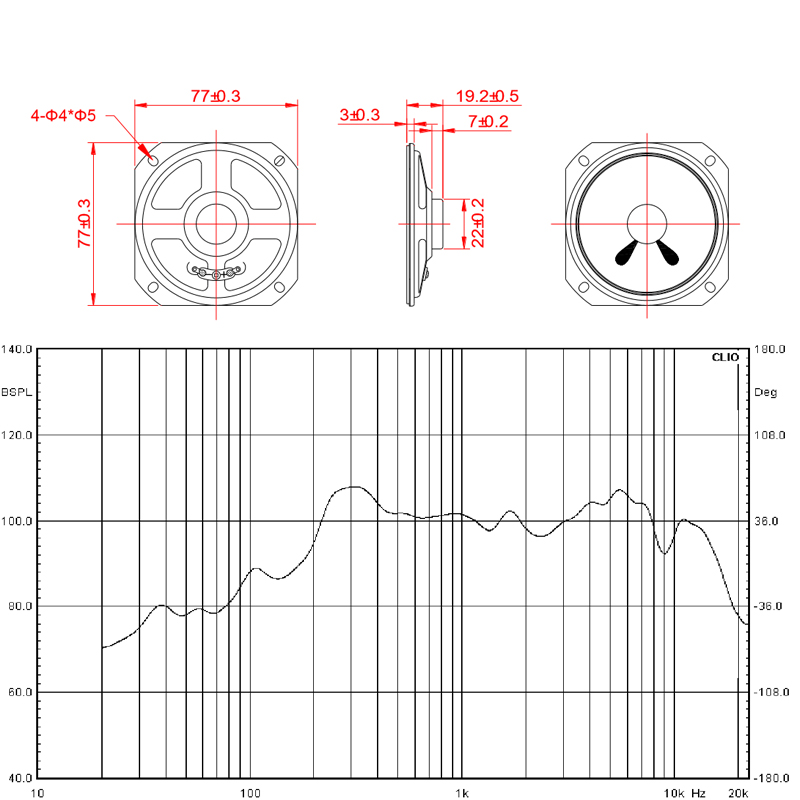

Specification
Speaker
Mulitmedia speaker
Model
77CP08K
Diameter
77*77mm
Rated power
3.0watt Max 4.0watt
Nominal Impedance
8 Ohm±15%
Lowest Resonance Frequency
270±20% HZ
Output Sound Pressure Level(S.P.L)
101 ± 3db.
Effective Frequency Band
F0-8KHZ ,Average SPL±10db
Certificate
Previous:
Good sound loudspeaker driver unit 4ohm 15w vibration speaker
Next:
3 inch paper cone speaker unit 8ohm loudspeaker driver
4 ohm loudspeaker
speaker unit
