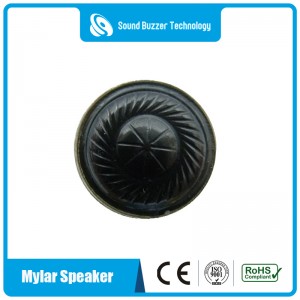

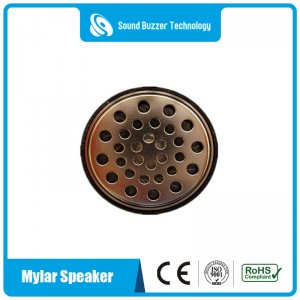

Hot sales micro speaker 36mm 50ohm mylar speaker

Short Description:


  • Sample: Free sample
  • Lead-time: 10-20days
  • Type: Passive
  • Min.Order Quantity: 1000Piece/Pieces,support trial order
  • Supply Ability: 100000 Piece/Pieces per Month
  • Port: Xiamen,Shenzhen,Ningbo,etc
  • Payment Terms: T/T,L/C.Paypal
  • Brand: soundbuzzer
  • Technology support: Yes
  • Support customization: Yes
  • Product Detail

    Product Tags

    Specification
    Speaker Mylar speaker
    Model 36M50R
    Diameter 36*5(H)mm
    Rated power 0.5watt  Max 1.0w att
    Nominal Impedance 50 Ohm±15%    At1000 HZ
    Lowest Resonance Frequency 540±20% HZ
    Output Sound Pressure Level(S.P.L)  98 ± 3db/1 Watt.1Meter.Average at800,1000,1200,1500HZ.
    Effective Frequency Band 300-3KHZ ,Average SPL±10db
     Distortion 3%Maximum At1000HZ 0.5 W
    Load Test Bt Audio Singnal GeneratorAt 5.0 Volts.total 48 hours and20~20KHZ Resonant Frequency
    Certificate ROHS, CE, REACH, ISO9001

    36M50
