Sound buzzer speaker driver unit 30mm 32ohm 0.2w speaker

Short Description:


  • Sample: Free sample
  • Lead-time: 10-20days
  • Type: Passive
  • Min.Order Quantity: 1000Piece/Pieces,support trial order
  • Supply Ability: 100000 Piece/Pieces per Month
  • Port: Xiamen,Shenzhen,Ningbo,etc
  • Payment Terms: T/T,L/C.Paypal
  • Brand: soundbuzzer
  • Technology support: Yes
  • Support customization: Yes
  • Product Detail

    Product Tags

    Sound buzzer speaker driver unit 30mm 32ohm 0.2w speaker

    2018 详情页店招

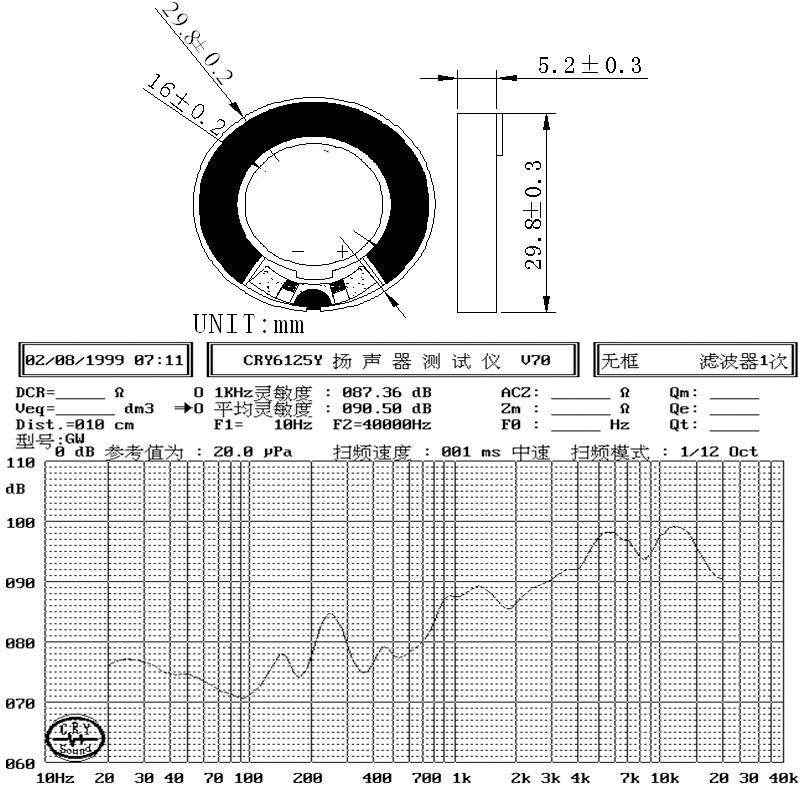

    Specification
    Speaker Mylar speaker
    Model 30PM32R
    Diameter (Dia )30MM*5.2MM (H)
    Rated power 1.0 watt Max 1.2 watt
    Nominal Impedance 32 Ohm±15%
    Lowest Resonance Frequency 180±20% HZ
    Output Sound Pressure Level(S.P.L) 90± 3db.
    Effective Frequency Band F0-20KHZ ,Average SPL±10db
