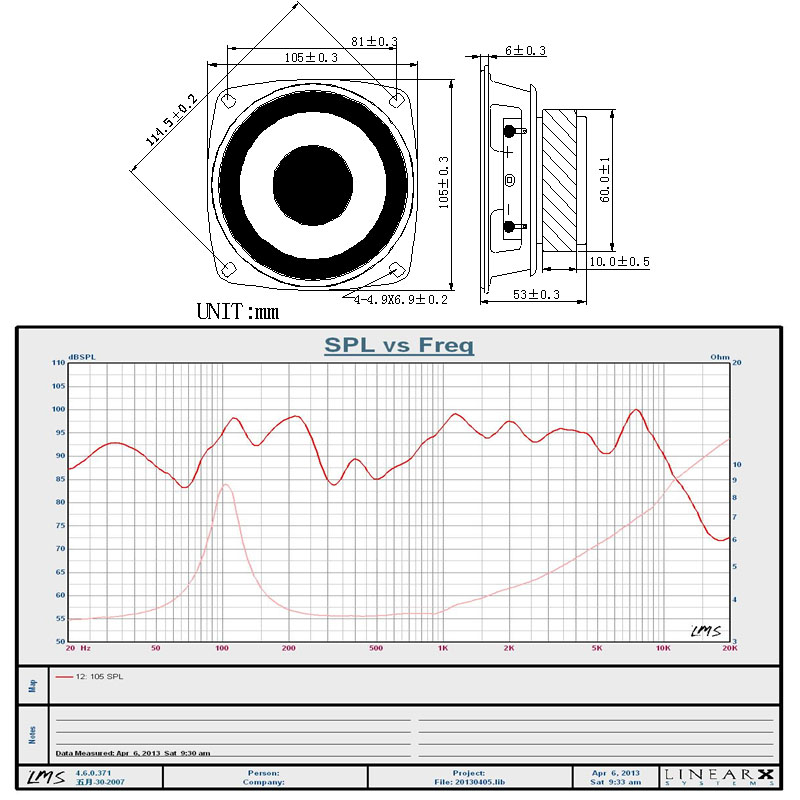

| Specification | |
|---|---|
| Speaker | Auto speaker |
| Model | 105FP04R |
| Diameter | 105*53(H)mm |
| Rated power | 20.0watt Max 25.0w att |
| Nominal Impedance | 4 Ohm±15% At1000 HZ |
| Lowest Resonance Frequency | 100±20% HZ |
| Output Sound Pressure Level(S.P.L) | 95 ± 3db/1 Watt.1Meter.Average at800,1000,1200,1500HZ. |
| Effective Frequency Band | F0-11KHZ ,Average SPL±10db |
| Certificate |  |
